What is efficiency of transformer Class 12?
Daniel Cobb What is efficiency of a transformer?

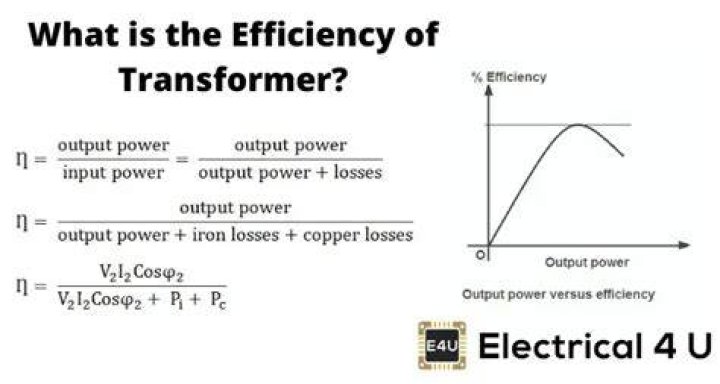

The ratio of a transformer's output power to its input power is known as transformer efficiency. The effect of transformer losses is measured by transformer efficiency, which is typically expressed as a percentage. The following formula is used to measure transformer efficiency: η=POUTPIN.
What is the formula for efficiency of a transformer?
As a transformer being highly efficient, output and input are having nearly same value, and hence it is impractical to measure the efficiency of transformer by using output / input. A better method to find efficiency of a transformer is using, efficiency = (input - losses) / input = 1 - (losses / input).
What is a transformer in physics class 12?
Transformer. A Transformer is used to convert low voltage (or high current) to high voltage (or low current) and vice versa. It is based on the principal of electromagnetic induction. One of the coils called the primary coil has Np turns. The other coil is called the secondary coil; it has Ns turns.
What is a transformer Class 12 shaala?
Solution. The transformer is an electrical device that converts low alternating voltage at high current to high alternating voltage at low current and vice-versa.
Efficiency of Transformer, Chapter 7, Alternating Current, Class 12 Physics
Why efficiency of transformer is high?
Losses in the transformer are very less compared to any other rotating machine, hence efficiency of transformers will be very high. Efficiency will be of the order of 95% to 98%.
What is meant by efficiency of transformer and its all day efficiency?
The ratio of output in kWh to the input in kWh of a transformer over a 24-hour period is known as all day efficiency. The ordinary or commercial efficiency of a transformer is defined as the ratio of output power to the input power.
What is a transformer efficiency triangle?
Transformer Efficiency
Here the three quantities of VA, W and η have been superimposed into a triangle giving power in watts at the top with volt-amps and efficiency at the bottom. This arrangement represents the actual position of each quantity in the efficiency formulas.
What is the efficiency of single phase transformer?
A single-phase transformer has maximum efficiency of 98 %.
How the efficiency of a transformer depends on load?
In transformer, routine efficiency is depends on load current and power factor of load. Efficiency curve with respect to load current is double valued function, so that same efficiency is possible at two different load conditions. By keeping load current constant, the maximum efficiency will be obtained exactly at UPF.
What is EMF equation of transformer?
Therefore, in general, the EMF equation of the transformer is represented as, ?=4.44?φ??…( 3)
What is a transformer ratio?
The transformer turns ratio is the number of turns of the primary winding divided by the number of turns of the secondary coil. The transformer turns ratio provides the expected operation of the transformer and the corresponding voltage required on the secondary winding.
What do you mean by all efficiency?
April 20, 2018 November 9, 2017 by admin. All Day Efficiency is defined as the ratio of total energy output for 24 hrs i.e. for the whole day to the total energy input for the same day. All Day Efficiency is basically Energy Efficiency of Transformer calculated for a period of 24 hrs.
What is the value of efficiency?
In this paper, we introduce the value of efficiency (VOE), a metric that determines the maximum allowable cost for an innovation to improve the levelized cost of electricity (LCOE).
Why is the efficiency of a transformer not 100?
While we say that transformers are very efficient, we know that they aren't 100% efficient. There are two main ways that transformers lose power: core losses and copper losses. Core losses are the eddy current losses and hysteresis losses of the core.
Which transformer is more efficient?
As you would expect, at the NEMA TP-1 conditions—35% loading—the NEMA TP-1 transformer is the most efficient transformer. In fact, due to its reduced no-load losses, the NEMA TP-1 transformer is the most efficient transformer for all loadings up to and slightly higher than 35%.
What factors affect the efficiency of a transformer?
Factors That Affect the Efficiency of a Transformer
- The heating effect of current in a coil. Power is lost as heat I2R whereby I is the current flowing through the coil and R is the resistance of the coil. ...
- Heating effect of induced eddy currents. In the iron core. ...
- Magnetization of the Iron Core. ...
- Flux leakage.
What is hysteresis loss in transformer?
Hysteresis loss in a transformer occurs due to magnetization saturation in the core of the transformer. Magnetic materials in the core will eventually become magnetically saturated when they are placed in a strong magnetic field, such as the magnetic field generated by an AC current.
What is a transformer symbol?
While the schematic symbol of a transformer may look like two coils (called windings) placed next to each other, the magnetic coupling and orientation between these two coils is also indicated within its schematic symbol.
What is the condition of maximum efficiency in transformer and also write formula?
The transformer will give the maximum efficiency when their copper loss is equal to the iron loss.
What is called transformer?
A transformer is a device that transfers electric energy from one alternating-current circuit to one or more other circuits, either increasing (stepping up) or reducing (stepping down) the voltage.
What is K in transformer?
K-factor is a weighting of the harmonic load currents according to their effects on transformer heating, as derived from ANSI/IEEE C57. 110. The higher the K-factor, the greater the harmonic heating effects. There are many different loads such as computers, solid state devices and motors which cause a non linear load.
What is the condition for maximum efficiency in transformer?
Thus, the efficiency of transformer will be maximum when the constant losses (or iron losses) being equal to variable losses (or copper losses).
What is a transformer PDF?
A Transformer is a static electrical device that transfers electrical energy between two or. more circuits through electromagnetic induction. A varying current in one coil of the. transformer produces a varying magnetic field, which in turn induces a varying. electromotive force (e.m.f) or “voltage” in a second coil.
