How do I know if my hydraulic cylinder is leaking internally?
Sarah Oconnell What results when a hydraulic system has internal leaks?
Internal leakage through a valve can result in a system that operates inefficiently and impact the pressure, temperature, flow, velocity and other parameters. This type of leakage will most likely result in equipment inefficiencies, leading to inconsistencies in the processes that rely on the hydraulic circuit.
How do I know if my cylinder is bypassing?
The conventional way of testing the integrity of the piston seal in a double-acting cylinder is to pressurize the cylinder at the end of stroke and measure any leakage past the seal. This is commonly referred to as the "end-of-stroke bypass test".
What causes hydraulic cylinders to leak down?
Leaks generally occur when the piston seals, holding valve, or rod seals wear out or are compromised due to various reasons. One cause of hydraulic cylinder drift is contaminated hydraulic fluid, which can damage seals and/or sealing surfaces.
What is cylinder creep?
There are certain conditions in a hydraulic cylinder circuit which may cause a cylinder to slowly drift (creep) when its 4-way control valve is in its center neutral position. The cause (in the fluid circuit) for cylinder drift is the unbalance between areas on opposite sides of the piston.

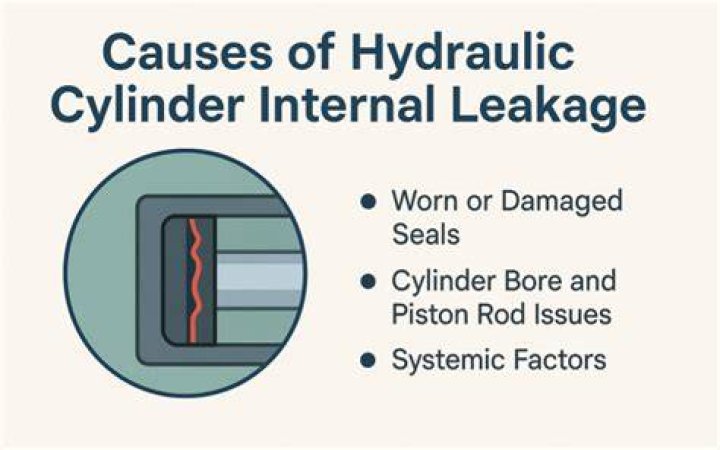

Hydraulic Cylinder internal leakage test
What would cause a hydraulic cylinder to not retract?
Worn or Damaged Piston Seals
Having insufficient hydraulic fluid in your system causes cylinders to become hydraulically locked and unable to fully retract or extend. Worn seals can also cause misalignment issues between the seal and cylinder rod, which may cause trouble when retracting hydraulic cylinders.
How do you pressure test a hydraulic system?
Hydraulic Pressure Testing Circuit
- Filling the circuit with working fluid.
- Pressurizing the pressure line to the pressure line test pressure.
- Releasing the Pressure of the pressure line.
- Pressurizing the return and drain line to their respective test pressures.
What causes internal leakage?
The most common cause of unplanned, excessive internal leakage is wear of component surfaces during normal operation. Leakage can also result from poor system design, incorrect component selection, poor quality control tolerances during the manufacturing of a component or incorrect overhaul of rebuilt components.
What is internal leakage?
Internal leaks, as the name implies, are leaks that take place within the hydraulic system. Some of these leaks are intentional and take the form of narrow pathways or small orifices that allow hydraulic fluid to fly from an area of high pressure to an area of low pressure in order to cool or clean specific components.
How do you find an air leak in a hydraulic system?
Check the suction side of the system for leaks. Pump seals, pipe fittings and unions are all possible areas for air leaks that allow the system to pull in air and pressurize it. You can find these leaks using an ultrasonic gun or by simply placing a small drop of oil or grease around the suspected leak site.
Why are my hydraulics slow?
The most common causes of poor hydraulic performance are particulate contamination, water contamination, clogged filters, high fluid temperature and incorrect hydraulic fluids.
Do you have to bleed hydraulic lines?
Air in your hydraulic lines can eventually cause damage to the entire system, so it's a good idea to bleed the lines once in a while, or if you suspect air was caught.
What causes pressure in hydraulic system?
In a hydraulic system, pressure is usually created by restricting the flow of the fluid, or by gravity.
How do you free a stuck hydraulic cylinder?
Therefore, they won't fly down like they fly up without a load and can even get stuck so they won't move down at all. Try this: Spray the top of the cylinders with a good penetrating oil, and let it soak a few hours. Work the cylinder up and down. The penetrating oil will usually do the trick.
How do I know if my hydraulic motor is bad?
4 SIGNS YOUR HYDRAULIC PUMP ISN'T DOING TOO WELL
- Your Hydraulic Pump Makes Noises. Hydraulic pumps make noise as they operate. ...
- Your Hydraulic Pump Leaks. Any leaking of hydraulic fluids should give you some concern. ...
- Your Hydraulic Pump Gets Too Hot. ...
- Your Hydraulic Pump Slows Down.
Why do hydraulic cylinders jerk?
These jerking movements often result from too much friction in the system. For example, you might have problems with worn or damaged seals or parts. Alternatively, you might not have enough lubrication running through the cylinder to keep it running smoothly. Hydraulic cylinders have set temperature ranges.
What causes a hydraulic cylinder to chatter?
Abnormal noise in hydraulic systems is often caused by aeration or cavitation. Aeration occurs when air contaminates the hydraulic fluid. Air in the hydraulic fluid makes an alarming banging or knocking noise when it compresses and decompresses, as it circulates through the system.
Why it is important not to check for hydraulic leaks with your hand?
Do not use your hand to find the leak. Use a piece of cardboard or wood instead. Hydraulic fluid is hot and can burn the skin. A pinhole leak, under pressure, could actually inject fluid under your skin, causing poisoning, infection, and threaten life and limb.
How do you stop a hydraulic leak?
By far the most reliable way to prevent hydraulic oil leaks is to remove potentially leaky connections from your system entirely. Hydraulic manifolds integrate any number of hydraulic valves into a single, compact assembly.
